BTO-30 concertina wire /Razor wire 300mm 10m length supplier
Short Description:
China professional supplier of wire fence since 1998! Concertina wire/Razor wire, Barbed wire fence, Field fence, Hexagonal wire netting, Welded wire mesh, Panels etc.
Material: Galvanized steel plate or Stainless steel plate
Surface treatment: Galvanized / Powder coating

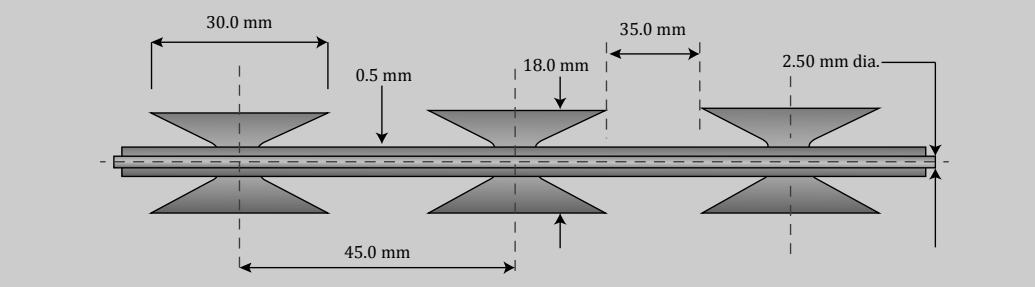

Blade type: BTO-30
Barb thickness :0.5mm +/- 0.05
Barb length: 30.0mm +/- 1.0
Barb width: 18.0mm +/- 1.0
Barb spacing: 45.0mm +/- 2.0
Core wire Diam : 2.5mm +/- 0.1
Coil type: Single or Crossed
Coil diameter: 300mm to 980mm or customized
Packing: thick paper wrapped then weaving cloth or carton
Company Details
Hebei Five -Star Metal is a professional producer and exporter of steel wire products in China for more than 20 years since 1998!
Owned factories in Hebei province and Tianjin Area- The main steel industry base in North China, Taking the advantages of near to steel mills and more than 30 years local traditional wire products producing,our company have been continuously producing and exporting various high quality wire products to the world markets, With more than 20 years service for many long-term customers worldwide.Hebei Five-Star Metal have accumulated rich experience in quality and packing for different markets and buyers, which making co operations more convenient and reliable
Galvanized concertina wire,Stainless steel plate concertina wire,Galvanized barbed wire, Pvc coated barbed wire, Galvanized Hex Netting, Galvanized Welded mesh, Garden fence, Panels .Hot dipped galvanized wire, Black annealed binding wire,Steel nails, Welding wire. Electrodes and production machines for related products etc .With the efforts of our Five-Star staff ,our products have been exported to over 30 countries.
Our factroies have achieved ISO9001 certification since 2004. Our qualified raw materials ,Professional production facilites,skilled workers and inspection system which throughout the entire production process have lead to world-class quality and ver good credits!
Facing the keener competition in the world markets, Hebei Five-Star Metal will be very glad to be your best choice as singel source of wire products;we have been aiming at offering five star wire products with Five-star quality,and Five-star service !
BTO-30 CONCERTINA WIRE / RAZORE WIRE
Concertina wire, also named Razor wire or barbed tape, is easy to install and acts as a visual deterrent as well as a physical barrier, which is extremely difficult to climb. It is made of galvanized or stainless steel materials for different environments and security grade. The razor tape is particularly difficult to crush or trample and is almost impossible to cut without specialized tools – and even then, it is a slow and dangerous job. It is regarded as a highly-effective and economical additional barrier to your security fencing system. It is popular in military sites, the national border, governments, commercial buildings and private residences.
| Type | Barb Thickness | Barb Length | Barb Width | Barb Spacing | Core wire Diam |
| BTO-30 | 0.5mm+/-0.05 | 30mm+/- 1.0 | 18mm+/-1.0 | 45mm+/- 2.0 | 2.5mm+/-0.1 |
Single coil concertina wire
Cross coil concertina wire
Single coil: Single coil concertina wire features simple structure and economical cost. There's no clips on the coil loop, it can stretch longer than cross type concertina wires. Single coil concertina wire is ideal for use where needs common security grade for ordinary security
Cross coil: Cross type concertina razor wire is the most widely used in all environments and sites to satisfy medium to highest grade of site security It has 3 to 5 clips on every to neighbour coil loops, which increases the security grades of sites.
| Razor blade type and specification | ||||||
| Reference Number | Blade style | Thickness(mm) | Wire Diam(mm) | Barb Length(mm) | Barb width(mm) | Barb space(mm) |
| BTO-12 |  |
0.5± 0.05 | 2.5± 0.1 | 12± 1 | 15± 1 | 26± 1 |
| BTO-15 |  |
0.5± 0.05 | 2.5± 0.1 | 15± 1 | 15± 1 | 33± 1 |
| BTO-22 |  |
0.5± 0.05 | 2.5± 0.1 | 22± 1 | 15± 1 | 34± 1 |
| BTO-30 |  |
0.5± 0.05 | 2.5± 0.1 | 30± 1 | 18± 1 | 45± 1 |
| CBT-25 |  |
0.5± 0.05 | 2.5± 0.1 | 25± 1 | 16± 1 | 40± 1 |
| CBT-60 |  |
0.6± 0.05 | 2.5± 0.1 | 60± 2 | 32± 1 | 100± 2 |
| CBT-65 |  |
0.6± 0.05 | 2.5± 0.1 | 65± 2 | 21± 1 | 100± 2 |
| Razor tape wire specification | ||||||
| Outside Diam | No.of loops | Standard length per coil | Type | Notes | ||
| 450mm | 33 | 8m | CBT-65 | Single coil | ||
| 500mm | 41 | 10m | CBT-65 | Single coil | ||
| 700mm | 41 | 10m | CBT-65 | Single coil | ||
| 960mm | 53 | 13m | CBT-65 | Single coil | ||
| 450mm | 112 | 17m | BTO-12.15.20.22.30 | Cross type | ||
| 500mm | 102 | 16m | BTO-12.15.20.22.30 | Cross type | ||
| 600mm | 86 | 14m | BTO-12.15.20.22.30 | Cross type | ||
| 700mm | 72 | 12m | BTO-12.15.20.22.30 | Cross type | ||
| 800mm | 64 | 10m | BTO-12.15.20.22.30 | Cross type | ||
| 960mm | 52 | 9m | BTO-12.15.20.22.30 | Cross type | ||
