3D Garden fence panels 100mmx55mm 2curves 4curves
Short Description:
Hebei Five-Star Metal Products as a professional supplier of steel wire products since 1998!
Mainly products include 3D welded garden fence panel(2curves 4curves,Mesh 100mm x 55mm,200mm x 55mm ,wire diameter 4.0mm 5.0mm etc.High 0.63m to 2.5m.Length 2.5 m.Color RAL 6005 9010,9005,7016etcs), Welded wire mesh, Hexagonal wire mesh, Chain link fence . Nylorcerca panels,Nylorcerca ECO,Rectangular post,etc,Beside wire fence, we also supply high quality fence wire ,for example,Hot dipped galvanized wire, Pvc coated wire and construction galvanized /black binding wire .Beside supply steel wire products,we also provide all kinds of steel nails -Polished common nails,Galvanzied common nails, Hot dipped galvanzied nails ,Umbrella head roofing nails ,Cut masonry steel nails etc.
Factroies have achieved ISO9001 certification since 2004. Our qualified raw materials ,Professional production facilites,skilled workers and inspection system which throughout the entire production process have lead to world-class quality and ver good credits!
In past over 20 years,our products be sold to America markets,Africa markets ,Europen markets,Middle East market more than 40 countries .
| Specification of 3D Fence mesh | ||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Rule of bendings | Post Type | color |
| 50x100mm50x150mm
50x200mm 55x200mm 75x150mm
|
3.0mm3.5mm
4.0mm 4.5mm 5.0mm
|
2000mm2500mm
2900mm
|
630mm830mm
1030mm 1230mm 1530mm 1730mm 1830mm 2230mm 2430mm
|
below 1.5m with 2 bendings,above1.8m with 3 bendings,
above 2.5m with 4 bendings
|

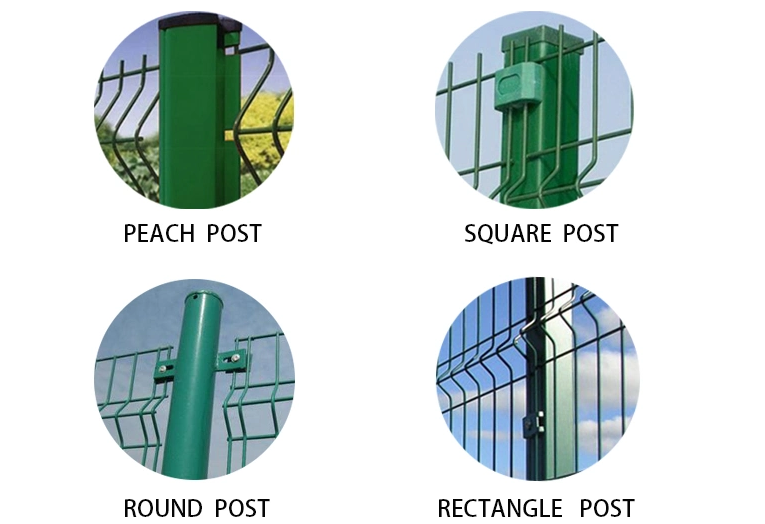

Round Post48x1.5/2.0mm
60×1.5/2.0mm
Square Post 50x50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm
peach post 50x70x1.0/1.2mm 70x100x1.0/1.2mm
|
green-RAL-6005grey -RAL-7016
black-RAL-9005 All RAL color can be customized
|
| Surface Treatment:hot dipped galvanized , galvanized +powder coated , PVC coated | ||||||

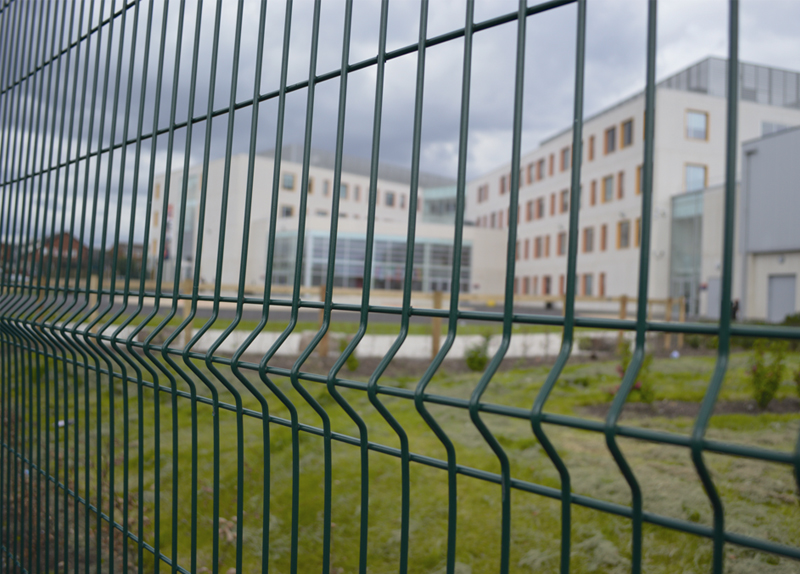

A 3D Curved Fence is a fence designed with a curved shape to create a three-dimensional appearance. These fences are usually made of materials such as metal, wood or vinyl and can be used for a variety of purposes such as privacy, security or landscaping. The curved shape adds a unique and interesting character to the fence, making it an attractive addition to any property. The 3D curved fence is designed to follow the contours of your landscape naturally, making it a great choice for uneven terrain.

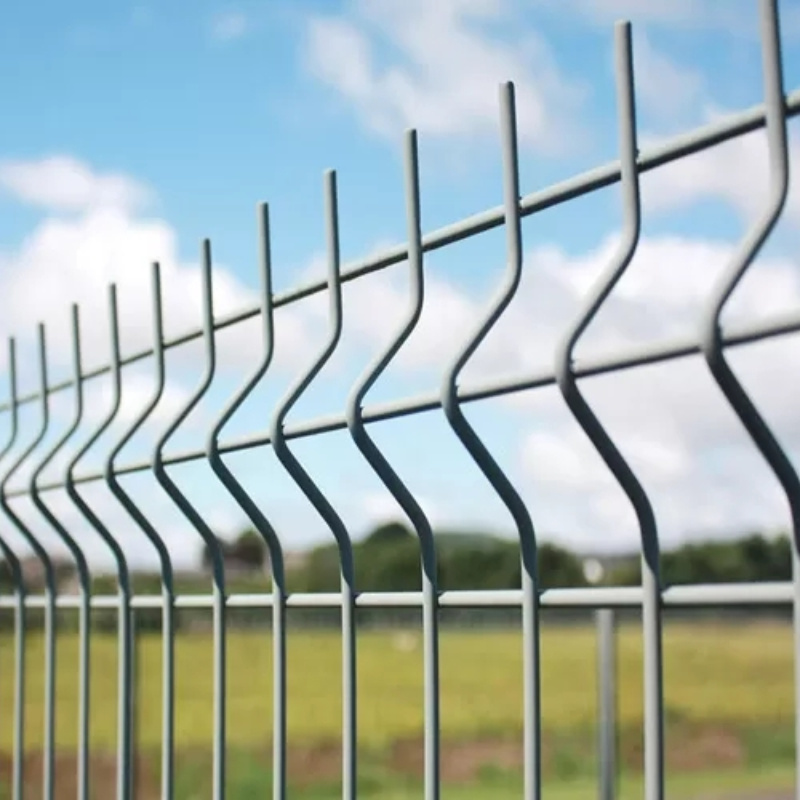

3d curved welded wire mesh fence is a type of welded wire mesh which has V-shaped strengthen bending curves. It is made of high quality low carbon steel wire, galvanized steel wire,metal column connected. The surface treatment of Triangle bend fence includes: hot-dipped galvanized, PVC coated, powder coated, polyester coated.
Material: High quality low carbon steel wire, galvanized iron wire etc.
Manufacturing process: spot welding,Gas shielded welding.
Finishing: Galvanized, Powder spraying, PVC coated, Vinyl coated.
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.
